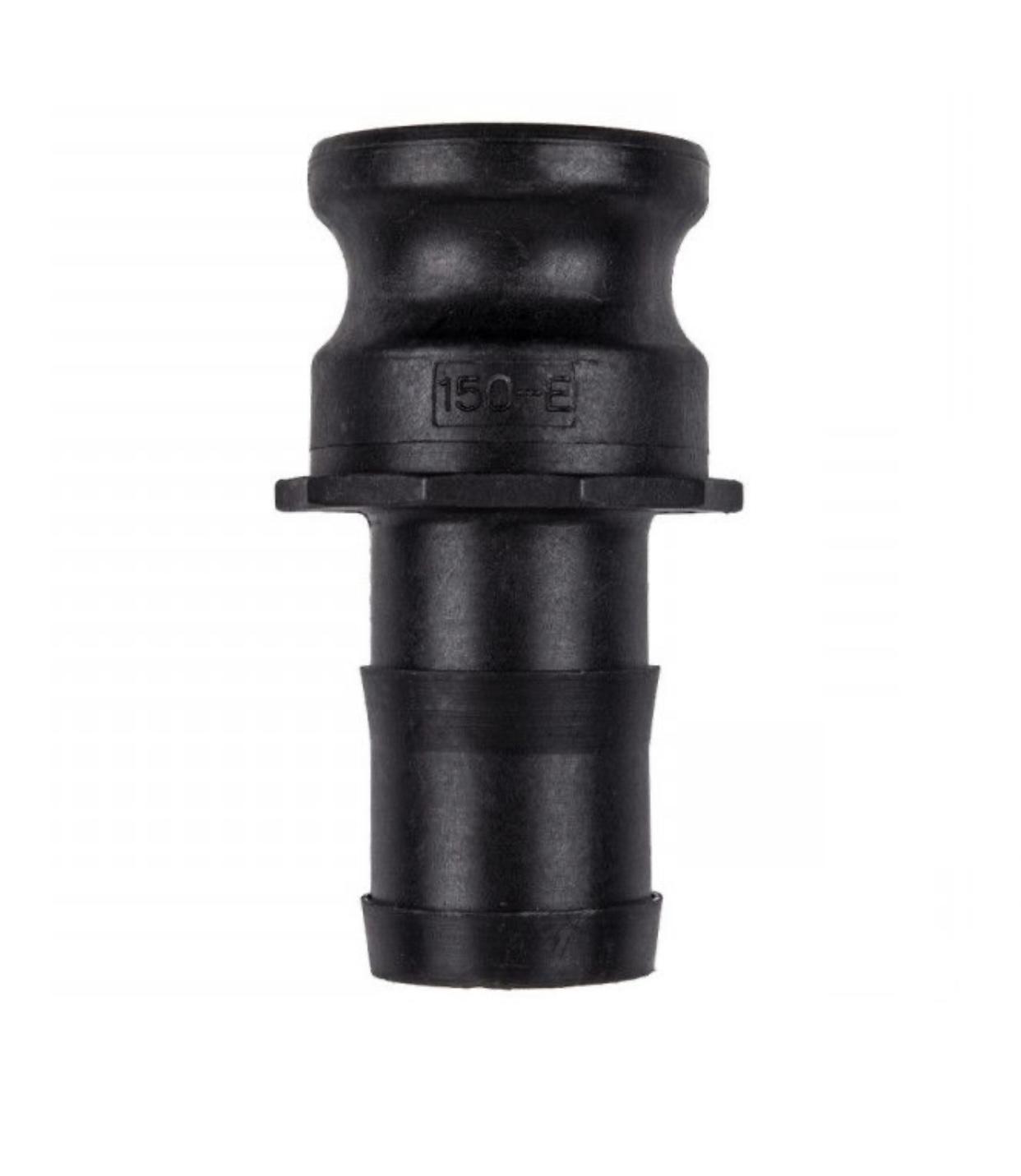

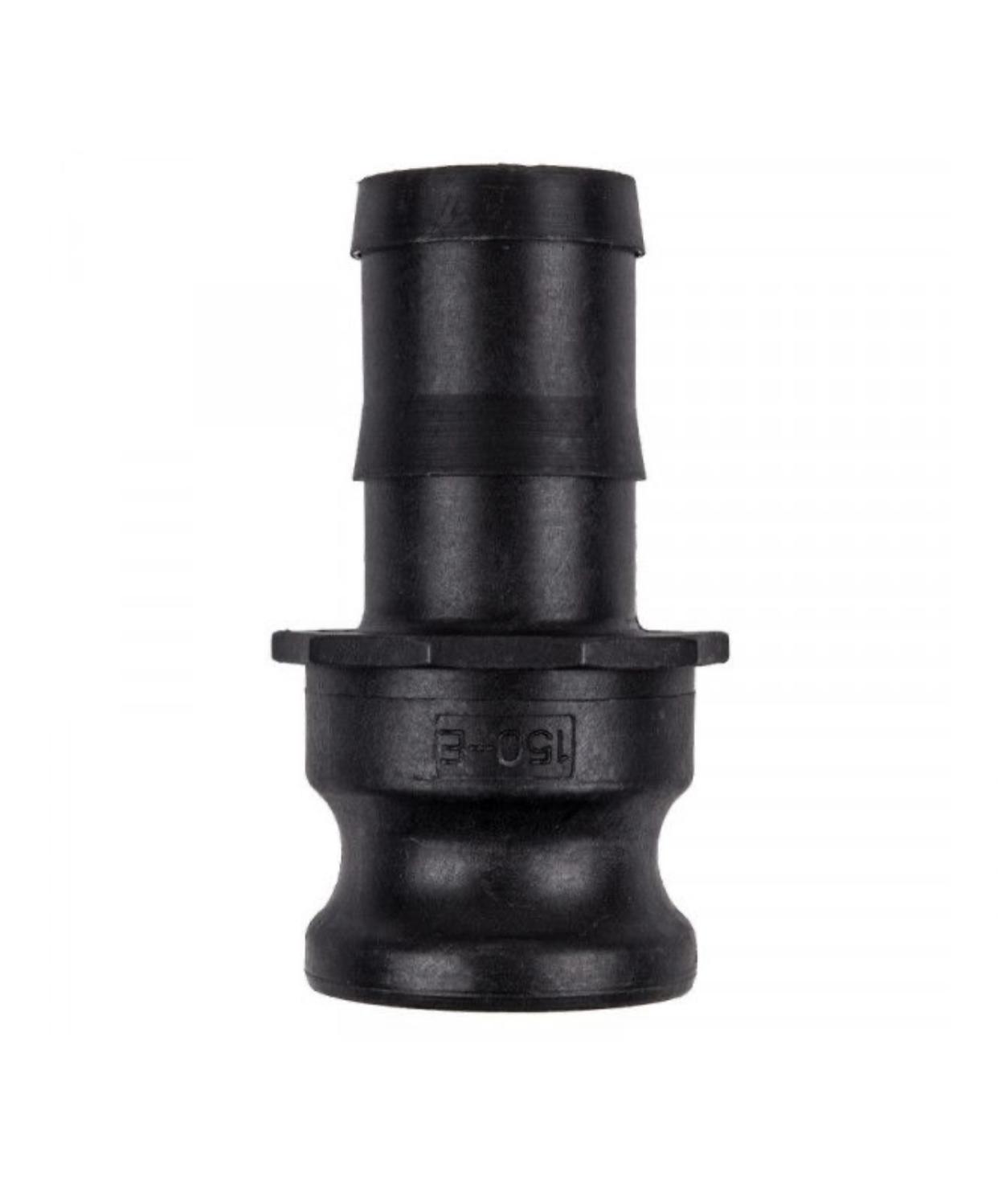

Camlock PP Type E Male Adapter × Hose Tail – 100 mm (4″) Polypropylene

The Camlock PP Type E adapter provides a fast and secure method to attach hoses to camlock systems. Simply insert the barbed end into a hose (secured with a clamp), and couple the camlock end to a compatible female part using its cam arms. The precision-molded design ensures a tight seal compliant with Mil‑A‑59326A and EN 14420‑7 standards. Perfect for frequent connect/disconnect operations in environments where speed, reliability, and chemical resistance are essential.

General/Technical Specifications

• Material: Polypropylene (PP) with stainless steel cam arms & pins

• Size: DN 100 (4″ nominal) camlock end

• Hose Barb: 100 mm outer diameter

• Standards: Mil‑A‑59326A / EN 14420‑7

• Weight: approximately 590 g

• Color: Black PP

• Working Pressure: Up to ~100 psi (≈ 6–7 bar) depending on hose / clamp

• Temperature Range: –26 °C to +93 °C (–15 °F to 200 °F)

• Compatible Media: Water, chemicals, food-grade liquids (PP’s chemical-resistance makes it suitable for many industries)

• Pressure Types: Suitable for vacuum and suction/discharge applications, but not for compressed air/gas
